LeiBa 46H+ fully automatic CTP
Keyword:
Classification:
CTP
E-mail：
Plate size: 370 x 370 mm ~ 1163 x 940 mm
Models: 4672H+ / 4696H+ / 46128H+
The new CRON 46H+ series CTP features a redesigned exterior with an integrated output device, enhancing speed and performance. It integrates automatic slip paper removal, plate supply, high-precision high-speed plate making, and online punching functions, with 200-sheet fully automatic plate supply for unmanned operation.
46H+报业或商报两用机技术参数↓：
|
46H+ Newspaper and Commercial Dual-purpose Specifications |
|
||||
|
Model |
4648H+ |
4664H+ |
4672H+ |
4696H+ |
46128H+ |
|
Plate |
Max. 1163x940 mm / Min. 370x370 mm |
||||
|
Laser channel |
48 |
64 |
72 |
96 |
128 |
|
Throughput (with Punch） |
47丨 41 丨24(24) 56丨 49丨 30(29) 59 丨53 丨33(32) 60丨60丨40（39） 60丨60丨48（46） 1200 dpi/800 mm丨 1500 dpi/800 mm 丨2400 dpi/1030 mm Production capacity in the table:TP ≤ 175 mj/cm² , UVP-I+ ≤ 45 mj/cm² |
||||
|
Plate Feeding Mode |
Automatic |
||||
|
PlateCapacity |
200 sheets |
||||
|
Paper Removal |
Automatic |
||||
|
Power supply |
Single-phase AC 220 V±5% 50/60 Hz Rated Power 5.6 KW |
||||
|
Dimensions |

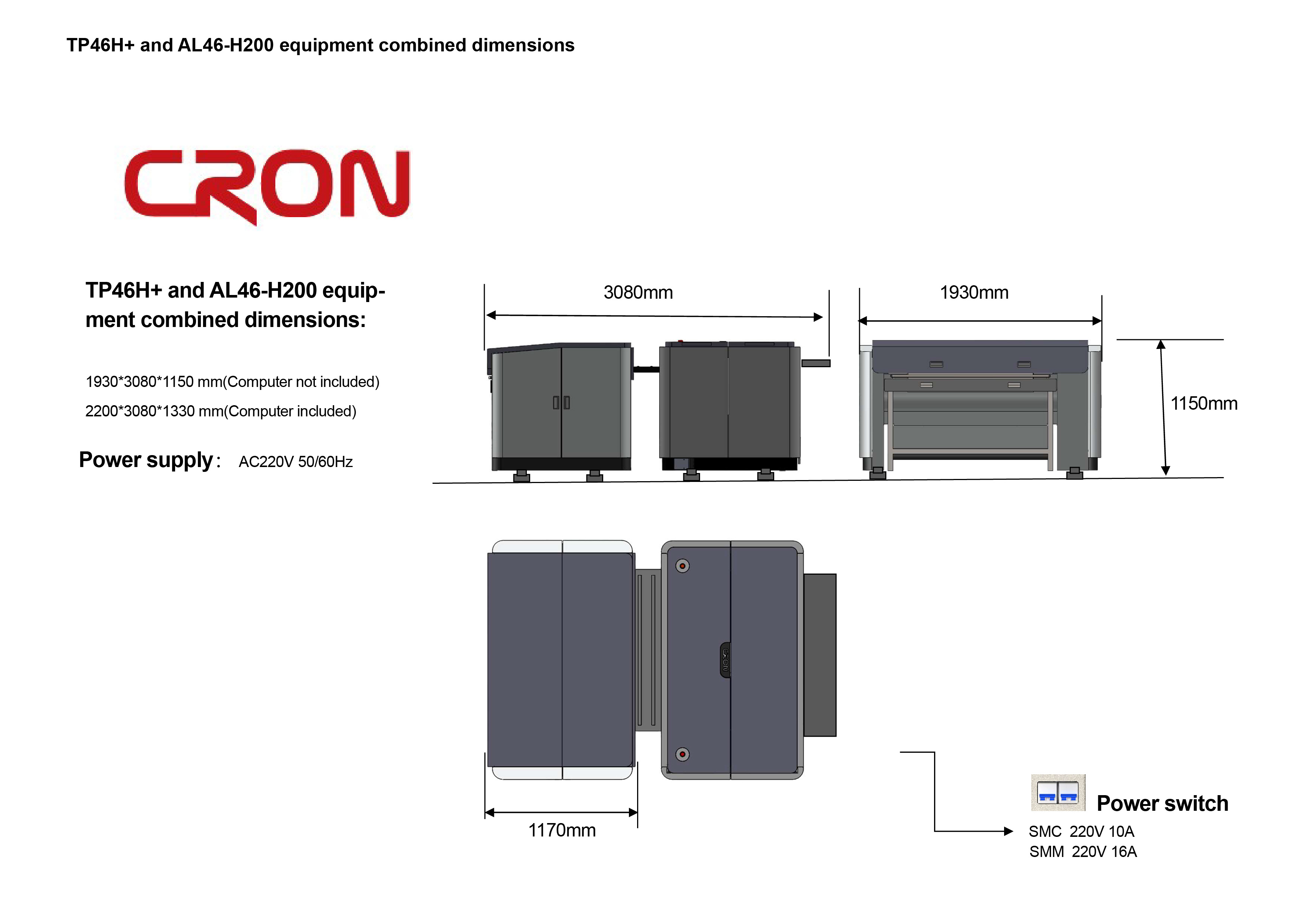

W×L×H: 2200×3080×1330 mm(with PC) |
||||
|
Net weight |
1620kg |
||||
Newspaper
Dual-purpose* Remarks：CRON reserves the rights to modify or change the design and technical parameters without notifying in advance
46H+ newspaper and commercial dual-purpose CTP
46H+ fully automatic CTP
