HTP-125 Rapid Plate Proceesor

CRON's newly launched CTP high-speed plate processor HPT-125 is highly matched with CRON's CTP H+ series and has an integrated appearance design. The plate processing speed reaches 70p/h (28s).

Keyword:

Label plate making

Classification:

Hardware

E-mail：

info@cron.com.cn

Return

Operation video

Customer Applications

Product Description

Product Parameters

Download information

Operation video

Customer Applications

CRON's newly launched CTP high-speed plate processor HPT-125 is highly matched with CRON's CTP H+ series and has an integrated appearance design. The plate processing speed reaches 70p/h (28s).

01 High-quality plate developing
Immersion-type plate processer design, roller shaft transmission structure, precision design and manufacturing processes, and the use of encoders as speed controllers ensure precise feedback during the plate developing process, resulting in more accurate developing times.

02 Fully automatic developer replenishment
The replenishment pump automatically adds developer fluid to the developing tank as per set instructions, with automatic overflow recovery. It configures automatic, standby, and shutdown replenishment based on actual usage to maintain consistent developer properties and stable plate processing. Optional pH and conductivity detection devices ensure precise washing conditions.

03 Super energy-saving green design
The ink supply system automatically replenishes and recycles ink, featuring a standby automatic cleaning function. It offers flexible switching between ink application and non-application modes. Unique drying and water-saving settings effectively conserve resources, promoting environmental sustainability. An optional cleaning water recycling device is available for water reuse, enhancing environmental friendliness.

04 Simple operation and easy maintenance
Simple and intuitive operating interface allows for clear monitoring of the working status of each part of the equipment and prompt handling of alarm prompts. The innovative upper and lower transmission system facilitates disassembly and maintenance cleaning. The liquid filtration system, drying hot air system, mechanical transmission system, electrical control system, etc., can all be easily and quickly maintained to keep the equipment in a stable state and ensure its longevity.

Technical specifications of HTP-125 rapid plate processor

Model	Rapid plate processor HPT-125

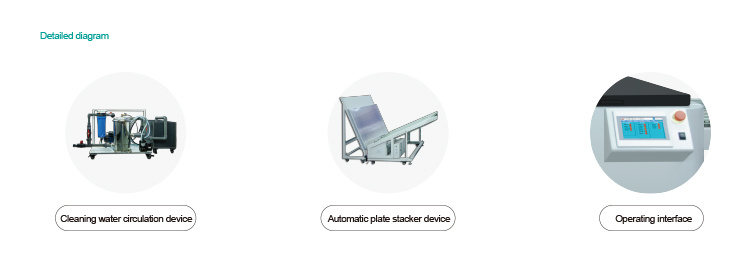

Optional device	Conveyor-bridge HPT-G125, automatic plate stacker HPT-Z125, PH value and conductivity detection device, washing water circulation device
Maximum processing width	1180mm
Minimum processing length	360mm
Maximum processing length	≥2 meter
Plate type	Thermal CTP plate, UVCTP plate
Plate thickness	0.10-0.40mm
Developing speed	70p/h(28s)
Developing time	15-40 秒 15-40 Seconds
Developing temperature	20-40℃ adjustable
Development capacity	50L
Replenishing system	Fully automatic replenishing
Drying trmperature	20-60℃ adjustable
Power supply requirements	220V (210V-230V) 50HZ~70HZ; rated power 5.50KW
Environmental requirements	Temperature 18~35℃; relative humidity: 20~70% (no condensation)
Equipment size (LWH)	1950mm1700mm1080mm / 3360mm1700mm1400mm (Including plate stacker)
Equipment weight (kg)	500kg/675kg (including plate stacker)
