LaBooa 46Hn fully automatic CTP

Simplicity, Intelligence, Saving People, Time, and Worry "Upgraded with 100-sheet automatic plate supply and a maximum plate size of 1136*940mm, it fully meets the printing needs of medium-sized packaging, cartons, books, newspapers, magazines, brochures, and single sheets.

Keyword:

Classification:

CTP

E-mail：

info@cron.com.cn

Return

Operation video

Customer Applications

Product Description

Product Parameters

Download information

Operation video

Customer Applications

Plate size: 320x 300 mm ~ 1163 x 940 mm
Models: 4648Hn / 4672Hn / 4696Hn / 46128Hn

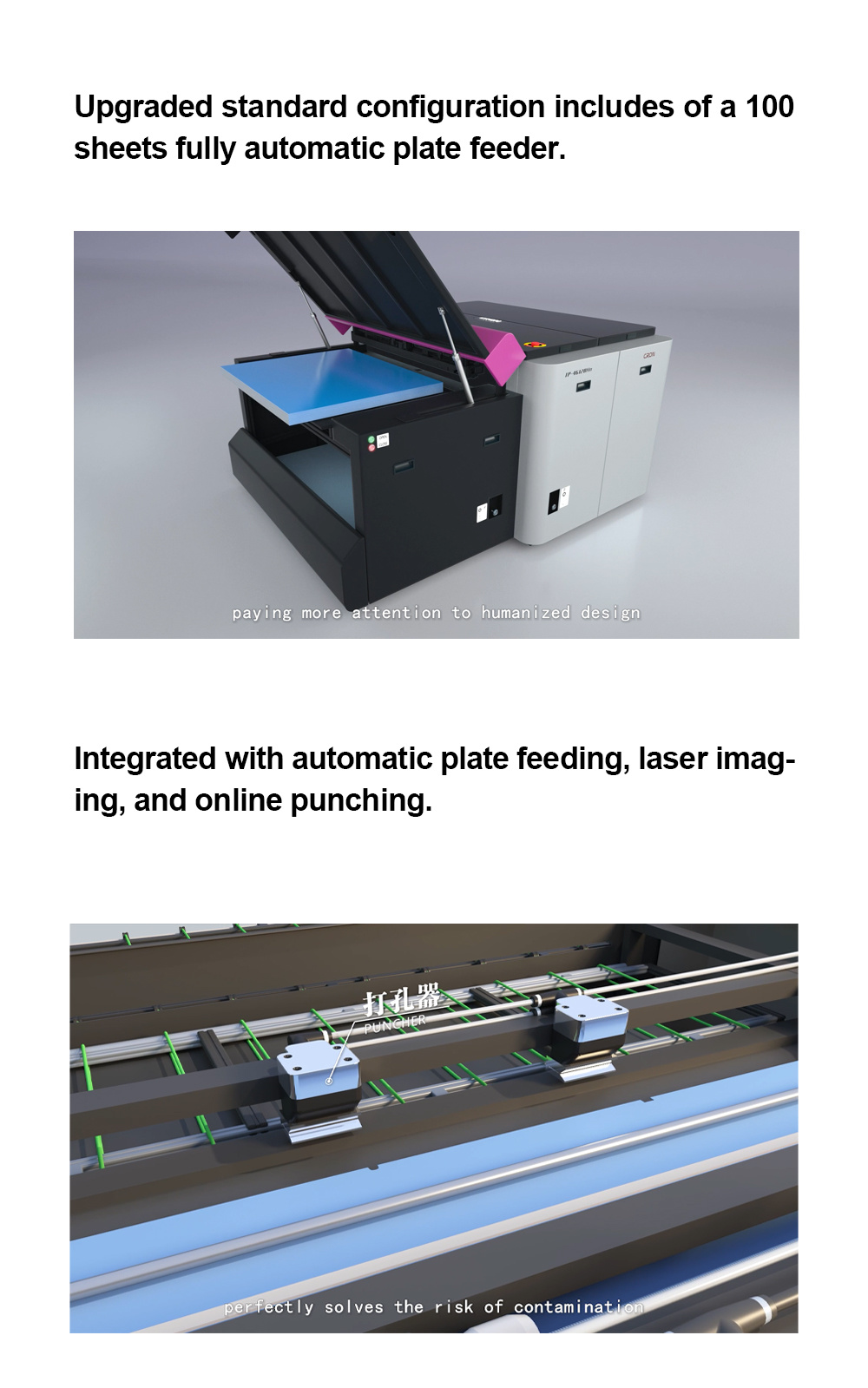

The 46Hn CTP integrates automatic plate supply, laser imaging, and inline punching for high efficiency. Upgraded with a standard 100-sheet fully automatic plate supply unit, it reduces plate loading times, improves efficiency, and saves labor costs. Additionally, it features automatic slip paper sorting and built-in inline punching, accommodating up to 5 sets of punch dies to meet diverse customer needs. Suitable for commercial and newspaper printing, it maintains Core's advantages of high integration, automation, and precision, with resolutions up to 10160dpi, meeting various printing needs.

46Hn Commercial Series Specification

Model	4648Hn	4672Hn	4696Hn	46128Hn
Plate Size	Max.1163×940 mm / Min.320×300 mm
Laser Channel	48	72	96	128
Throughput（with Punch）	24(23) p/h 33(32) p/h 40(38) p/h 48(46) p/h 2400 dpi/1030 mm Production capacity in the table:TP ≤ 175 mj/cm² ，UVP-X+ ≤ 35 mj/cm² , UVP-I+ ≤ 45 mj/cm²
Plate Feeding Mode	Automatic
Plate Capacity	100 sheets
Paper Removal	Automatic
Power supply	Single-phase 220 V ±5% 50/60 Hz Rated Power:5.4KW
Dimensions	W×L×H: 1900 x 2700 x 1150mm
Net weight	1300kg
