LeiBa 60Hn fully automatic CTP

Large-format Plate Making, Preferred for Packaging Printing With plate-making dimensions of up to 1524*1200 mm, integrated automatic plate supply, laser imaging, and inline punching, and upgraded with a standard 100-sheet fully automatic plate supply unit, it's the optimal choice for large-format packaging printing.

Keyword:

Classification:

CTP

E-mail：

info@cron.com.cn

Return

Operation video

Customer Applications

Product Description

Product Parameters

Download information

Operation video

Customer Applications

Plate size: 450 x 370 mm ~ 1524 x 1200 mm
Models: 6048Hn / 6064Hn / 4696Hn / 46128Hn

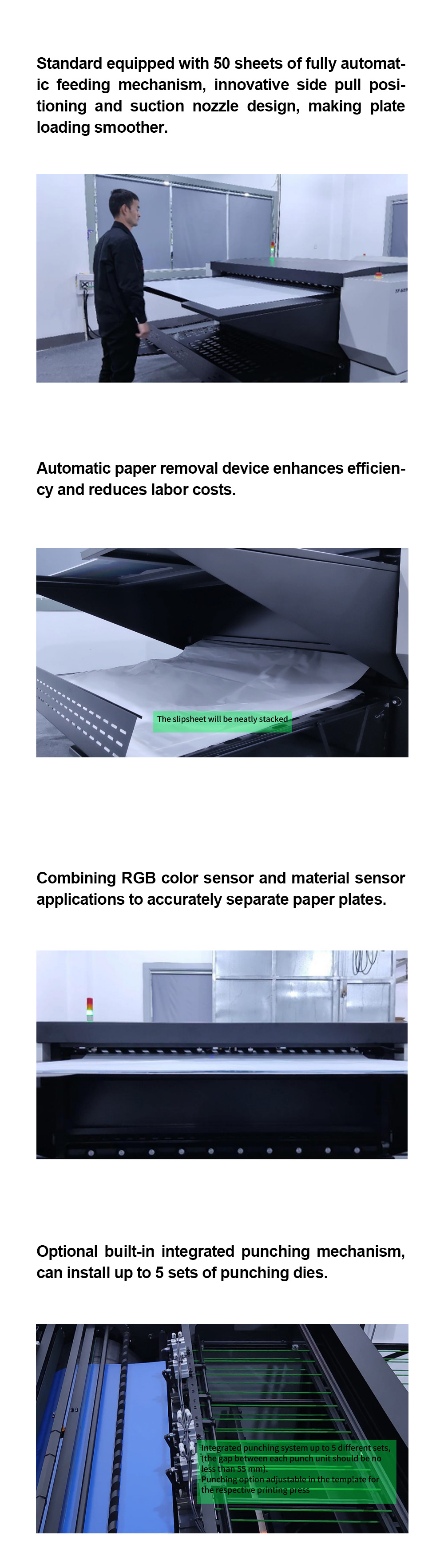

The 60Hn series is CRON's fully automatic large-format CTP, with a maximum plate-making area of up to 1524*1200 mm. Upgraded with a standard 100-sheet fully automatic plate supply unit and added automatic liner sorting functionality, it integrates automatic plate supply, laser imaging, and precision inline punching, accommodating up to 5 sets of punching dies. It's ideal for large-format packaging printing.

60Hn Commercial Series Specification

Model	6048Hn	6064Hn	6096Hn	60128Hn
Plate Size	Max. 1524x1200 mm / Min. 450x370mm (Plate thickness :0.13 ~0.40 mm)
Laser channel	48	64	96	128
Throughput (with Punch）	18(18) p/h 23(22)p/h 30(29) p/h 36(35) p/h 2400 dpi/1030 mm
Throughput（with Punch）	14(14) p/h 18(17)p/h 24(24) p/h 30(29) p/h 2400 dpi/1410mm Production capacity in the table:TP ≤ 185 mj/cm² ，UVP-X+ ≤ 35 mj/cm² , UVP-I+ ≤ 50 mj/cm²
Plate Feeding Mode	Automatic
Plate Capacity	100 sheets
Paper Removal	Automatic
Power supply	3-phase AC 380 V±5% 50/60Hz, Rated Power 6.6 KW
Dimensions	W×L×H: 2280×2981×1195mm
Net weight	1800kg
