36H fully automatic CTP

Stable and refined mid-size plate-making equipment Plate-making area ranges from 240x240mm to 925x675mm, integrating functions such as automatic plate supply, laser imaging, and inline punching into one unit, catering to medium-sized plate-making needs for books, magazines, newspapers, and paper boxes.

Keyword:

Classification:

CTP

E-mail：

info@cron.com.cn

Return

Operation video

Customer Applications

Product Description

Product Parameters

Download information

Operation video

Customer Applications

Plate size: 240 x 240 mm ~ 925 x 675 mm
Models: 3632H / 3648H / 3664H / 3696H / 36128H

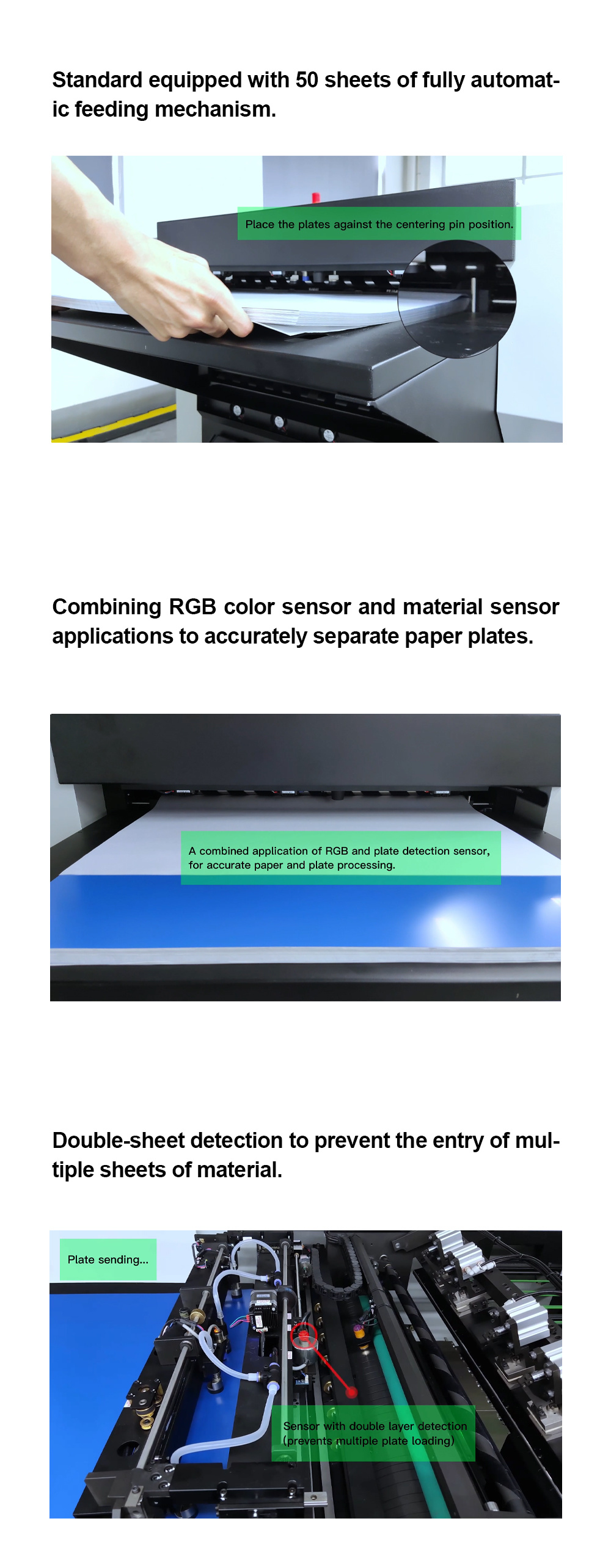

The CRON 36H CTP integrates automatic plate supply, laser imaging, and inline punching, offering stability, simplicity, and efficiency. It's ideal for high-end printing, 3D printing, and anti-counterfeiting. Standard with a 50-sheet fully automatic plate supply system, it features innovative side-pull positioning and nozzle design for smooth plate feeding, along with automated liner removal and plate-loading for enhanced efficiency and reduced labor costs.

36H Commercial Series Specification

Model	3632H	3648H	3664H	3696H	36128H
Plate Size	Max.925x675mm / Min.240x240mm
Laser channel	32	48	64	96	128
Throughput (with Punch)	25(24)p/h 34(32)p/h 41(39)p/h 50(49)p/h 60(56)p/h 2400dpi/745 mm Production capacity in the table:TP ≤ 200 mj/cm² ，UVP-X+ ≤ 40 mj/cm² , UVP-I+ ≤ 45 mj/cm²
Plate Feeding Mode	Automatic
Plate Capacity	50 sheets
Paper Removal	Automatic
Power supply	Single-phase AC 220 V±5% 50/60 Hz Rated Power 5.6 KW
Dimensions	W×L×H: 1626×1065×1070 mm
Net weight	1150kg

* Remarks：CRON reserves the rights to modify or change the design and technical parameters without notifying in advance

36H Newspaper and Dual-purpose Specifications

36H Newspaper and Dual-purpose Specifications			Newspaper Dual-purpose
Model	3632H	3648H	3664H	3696H	36128H
Plate	Max. 925x675mm/Min. 240x240mm
Laser channel	32	48	64	96	128
Speed（Punch）	39丨33丨25(24) 50丨44丨34(32) 50丨50丨41(39) 50丨50丨50(49) 60丨60丨60（56） 1200 dpi/800 mm 1500 dpi/800 mm 2400 dpi/745 mm Production capacity in the table:TP ≤ 200 mj/cm² , UVP-I+ ≤ 45 mj/cm²
Plate Feeding Mode	Automatic
Plate Capacity	50 sheets
Paper Removal	Automatic
Power supply	Single-phase AC 220 V±5% 50/60 Hz Rated Power 5.6 KW
Dimensions	W×L×H: 1626×1065×1070 mm
Net weight	1150kg
