Longyu-Dual drum high speed CTP 46DD series

Rapid Plate Making, Ultimate Exquisite Innovative dual-drum system, plate-making at 70 sheets/hour, with a 1500-sheet auto supply unit, enables unmanned operation. Ideal for high-end intelligent production.

Keyword:

Classification:

CTP

龙域DD870

E-mail：

info@cron.com.cn

Return

Operation video

Customer Applications

Product Description

Product Parameters

Download information

Operation video

Customer Applications

Plate size: 450 x 370 mm ~ 1163 x 940 mm
Models: DD858 / DD870

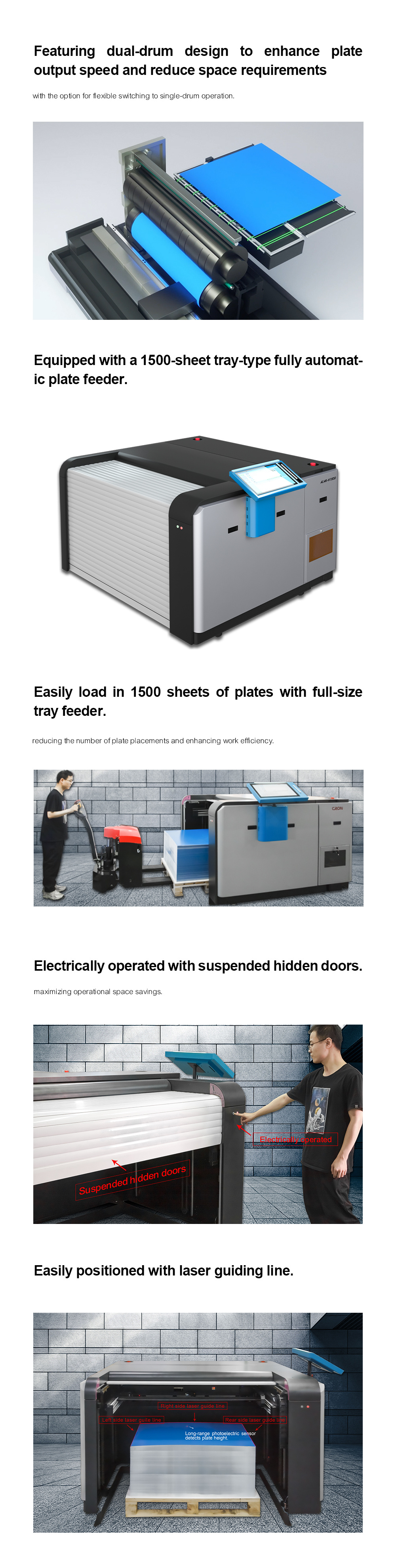

Featuring an innovative dual-drum system, it achieves plate-making speeds of up to 70 sheets/hour. Utilizing optical technology for square dot imaging, it ensures stable and exquisite dot output. With a 1500-sheet large-capacity auto supply unit and built-in inline punching, it efficiently boosts productivity for high-end printing. Its highly integrated structure saves energy consumption and floor space, making it the preferred choice for printing houses pursuing high-end intelligent production.

The Longyu 46DD dual drum high-speed CTP series is engineered for professional printing houses seeking precision and efficiency. With its dual drum design, it delivers faster plate imaging, high registration accuracy, and stable operation, ensuring reduced downtime and consistent print quality.

Dual-Drum Rapid CTP DD870 Specification

Model	DD858	DD870
Plate Size Range	Max.1163×940 mm / Min.450x370 mm
Compatible Plate	Process plate / Processless plate / Chemistry Free Plate / Low chemistry plate
Plate Thickness	0.13 ~ 0.30 mm
Laser Channel	96 128
Laser Diode Type(options)	Thermal or UV ( X+ / I+ )
Resolution (DPI)	2400/2540/2800 dpi（Upgradable DPI：4800/5080/9600 dpi）
Speed (with Punch)	55 p/h 70 p/h 2400 dpi/1030 mm
Power Requirements	Single-phase AC 220 V ±5% 50/60 Hz Rated Power 9 kW
Positioning Accuracy	± 0.01 mm
Workflow Connectivity	Standard: Laboo software(included) connects to most third-party workflow systems Optional: Control PC with touch panel
Dimensions	W×L×H: 2500x4330x1370 mm
Operating Environment	18 ~ 28 ℃ ; RH: 40% - 60% (non-condensing)
Net weight	3190 kg
