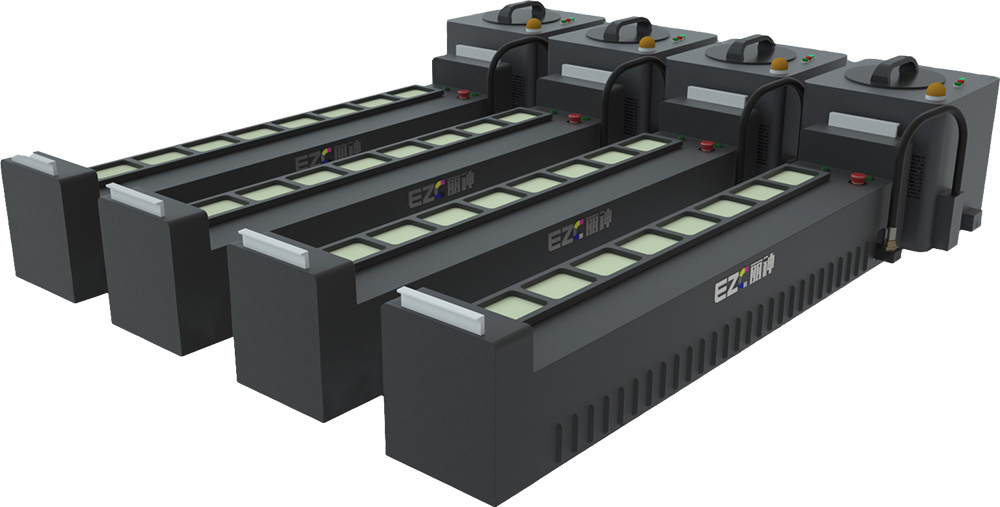

EZC digital inking system

EZC serves as a globally innovative intelligent digital ink delivery system, replacing traditional ink keys on printing presses with high-precision microliter metering ink pumps for precise ink delivery without transmission errors. Integration of EZC into traditional offset presses not only ensures high-quality prints with accurate and stable colors but also significantly enhances printing production efficiency. This leads to cost savings on consumables, reduces reliance on manual color control, decreases operator workload, and promotes a greener and more intelligent printing process.

Keyword:

advanced EZC digital inking system

quality EZC digital inking system

Classification:

EZC

EZC-UV油墨

E-mail：

info@cron.com.cn

Return

Operation video

Customer Applications

Product Description

Product Parameters

Download information

Operation video

Customer Applications

EZC digital inking system is a revolutionary technology that brings a new level of creativity and efficiency to the digital drawing and inking process. It offers precise and smooth line control, allowing artists to create detailed and stunning works with ease. The system is highly responsive, ensuring that every stroke is accurately captured. With its advanced features and user-friendly interface, EZC digital inking system is ideal for both professional artists and beginners. It provides a seamless experience, enabling users to bring their imagination to life on the digital canvas. Discover the power and potential of EZC digital inking system and unlock your creativity like never before.

EZC digital inking system optional format

EZC Format/mm	EZC Format/inch	Number of ink pumps	Weight/kg (per color)
330	13	10	17
350	15	11	18
520	20.5	16	26
680	27	21	34
740	29	23	37
850	34	24	42
920	37	28	46
1020	41	32	52
1160	46	36	59
1620	64	50	81

EZC Digital ink pump system (Applicable format specifications for printing machines: 260 mm-1650 mm)

ink supply unit width	32.5 mm	Working voltage	AC 220V
Digital ink pump max. ink supply rate	10.9 ml/min	Max. power	50 W/each ink pump
Ink supply accuracy	0.1%	Max. ink adjustment range(manual correction)	±20%
Max. number of ink groups that can be controlled	8 groups	Air cooling control temperature	40~45℃
UV ink fountain heating temperature	28~32℃

Continuous ink supply system

Ink capacity	3 Kg	Working voltage	AC 220 V
Heating temperature	30~33℃	Max. power	240 W/each group
Working air pressure	0.2MPa	Dimensions	284 × 242 × 268 mm (L × W × H)
Weight	20 Kg/each set

UV large capacity continuous ink supply system

Ink capacity	10 Kg	Working voltage	AC 220V
Working current	10 A	Heating temperature	30~33 ℃
Max. power	240 W/each group	Max. working pressure	0.4 MPa
Dimensions	32 Kg/set	Weight	325×275×405 mm ( L × W × H)

Large capacity automatic ink filling system

Paper tube packing capacity	12 Kg	Operating voltage	AC 220V
Working current	10 A	Heating temperature	48~50 ℃
Max. power	240 W/each group	Max. working pressure	0.4 MPa
Weight	32 Kg/set	Dimensions	425 x 240 x 590 mm (L x W x H)
